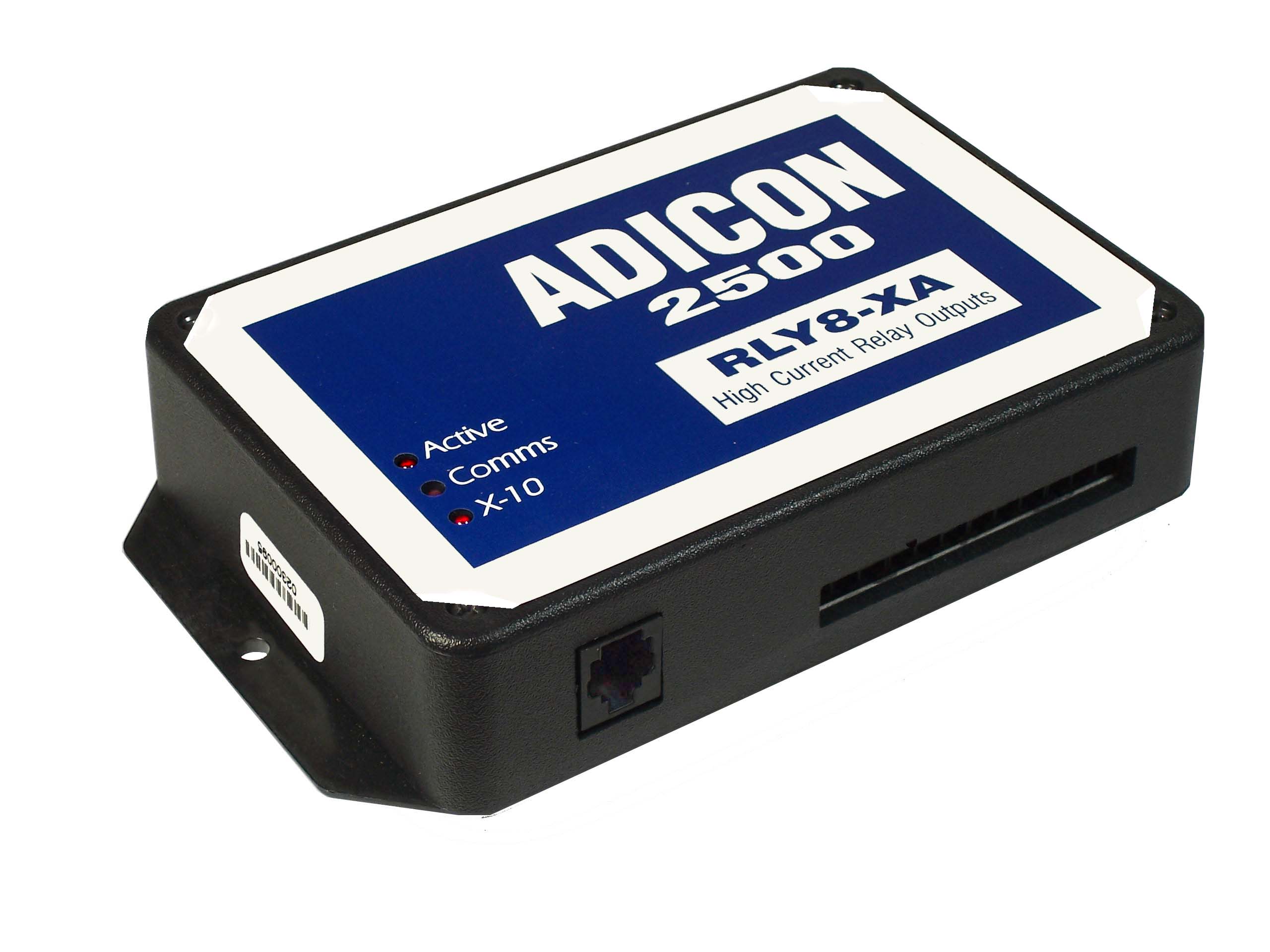

RLY-08XA Relay Module

RLY-08XA Relay Module


0 out of 5


Provides 8 High Current (10A) Form C Relays for switching heavy loads. With the addition of a TW-523, the RLY8XA will also work as an X-10 driven 8 channel relay module.

Size: 5.65″L x 3.75″W x 1.38″H
  • Relay Outputs – Screw Terminals* (Form C 10A)
  • X-10 – RJ11 interface for TW-523 (Cable included)
  • X-10 Address – Jumper Selectable (House codes A-P)
  • ADNET: 2 Screw Terminals*
  • Power: 2 Screw Terminals*
  • (up to 14 AWG)
Power: 9-12V DC, 800 mA.
