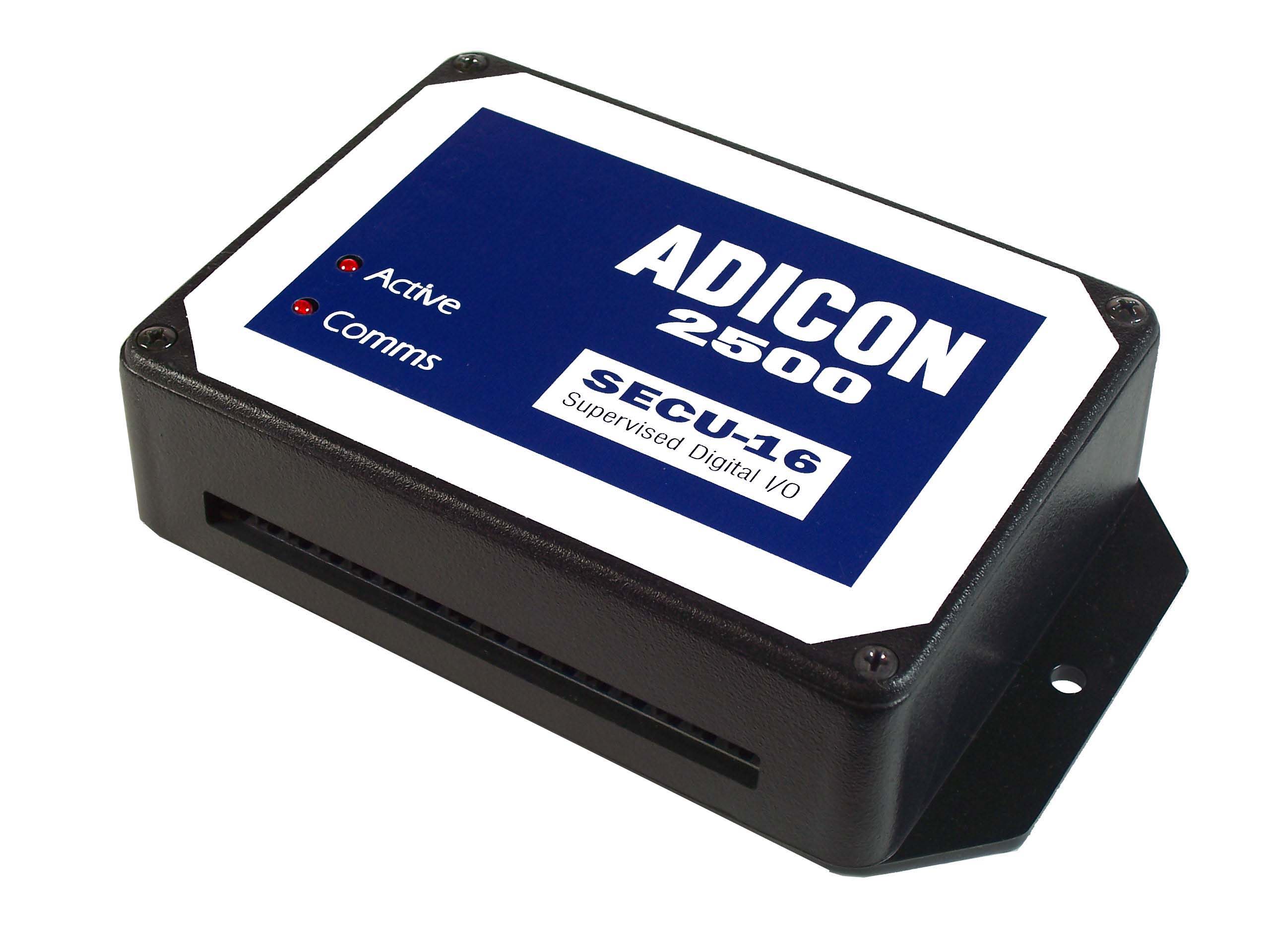

SECU-16 I/O Module

SECU-16 I/O Module

$99.00

0 out of 5

Provides 8 Low Current Relays (0.5A) as well as 8 “Supervised”* Input Channels. The 8 Input Channels may also be used as 8-bit A/Ds.

Category:

Description

Provides 8 Low Current Relays (0.5A) as well as 8 “Supervised”* Input Channels. The 8 Input Channels may also be used as 8-bit A/Ds.

Size: 5.5″L x 3.25″W x 1.38″H
I/O:
  • Relay Outputs – Screw Terminals* (Form A 0.5A)
  • Input Channels – Screw Terminals*
  • (1K Shunt or 0-5V 8-bit Analog)
  • ADNET: 2 Screw Terminals*
  • Power: 2 Screw Terminals*

* (up to 14 AWG)

Power: 9-16 Volts AC or DC, 200 mA.
