Speak-EZ Module

Speak-EZ Module


0 out of 5

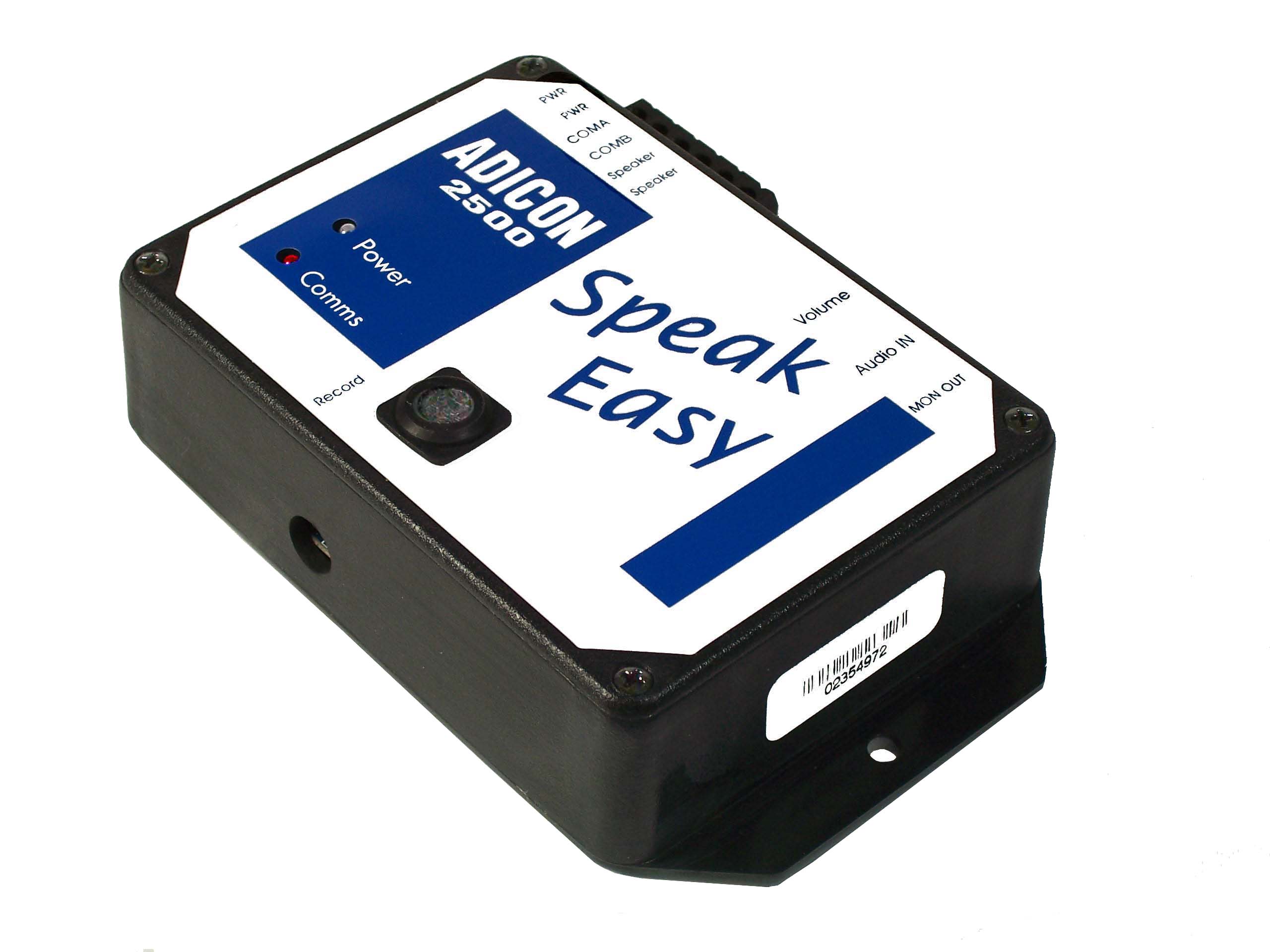

The SpeakEasy™ module interfaces to the Leopard™ or Ocelot™ controllers to play pre-recorded audio messages. Messages may be recorded using the on-board microphone or any audio line-level device such as a PC soundcard, tape deck, etc. The Speak-Easy™ has the option of 50 five second messages, 24 ten second messages, or 12 twenty second messages. The Speak-Easy™ can drive an 8 ohm speaker directly or may be connected to an external audio amplifier.

Size: 5.5″L x 3.25″W x 1.38″H
I/O: Built-in microphone for recording voice messages.
Audio line input for recording messages from line level sources. (Computer *wav files, stereo, etc.)
Audio line output for connection to external amplifier.
Amplified output for direct connection to 8 ohm speakers.
ADNET: 2 Screw Terminals*
Power: 2 Screw Terminals*
* (up to 14 AWG)
Power: 12 Volts AC, 800 mA.
