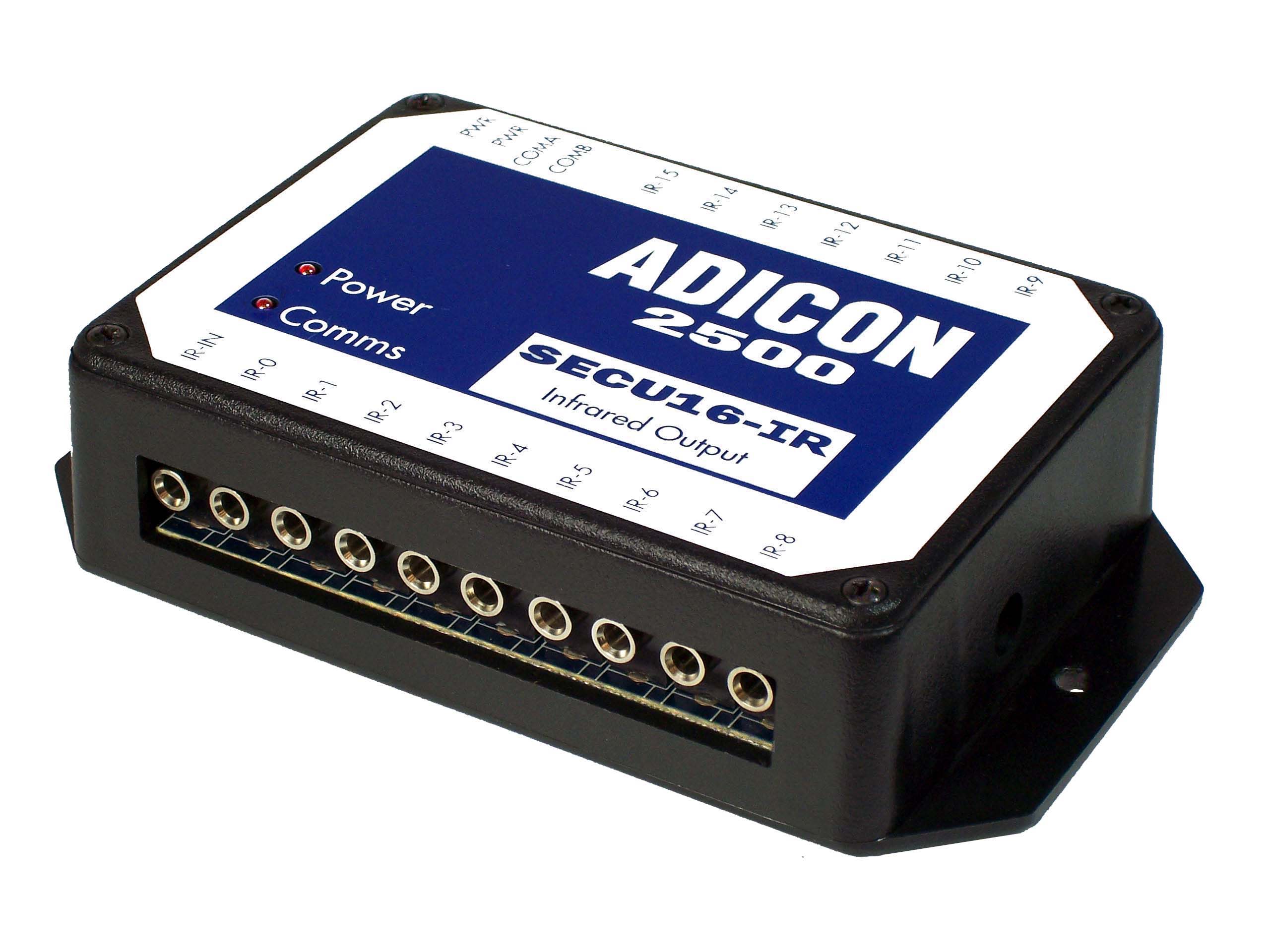

SECU-16-IR 16 Zone IR Module

SECU-16-IR 16 Zone IR Module

$99.00

0 out of 5
Category:

Description

Allows you to add up to 16 IR outputs at a time. It can be connected to the Ocelot™ or Leopard™ via the ADNET port to send an IR output to any zone desired.

Size: 5.5″L x 3.25″W x 1.38″H
I/O:
  • 16 switched zones IR Output (accepts standard IR emitter)
  • ADNET: 2 Screw Terminals*
  • Power: 2 Screw Terminals*

* (up to 14 AWG)

Power: 9-16 Volts AC or DC, 200 mA.
